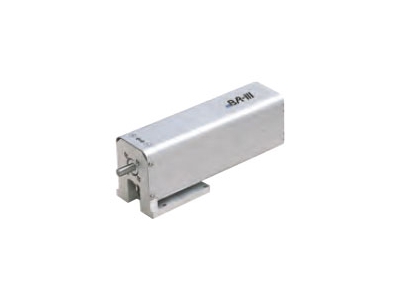

The BA-III 00D is a high-precision harmonic drive Cartesian robot actuator from Shibaura (Toshiba) Machines, designed specifically for rotational tasks. It features a 50W motor and can handle a maximum payload of 10 kg. This model provides a full 360° rotation range and achieves a maximum rotational speed of 360 degrees per second. It maintains a positioning repeatability of ±0.025 degrees.
BA3-00D
Harmonic drive - CARTESIAN Robot - Light Load
Shibaura Machine Co. Ltd. - TM Robotics
- Motor output: 50W
- Maximum load capacity: 10 kg
- Rotation range: 360 degrees
- Peak rotational speed: 360 degrees per second
- Position accuracy: ±0.025 degrees
Details
Specifications
Type
Cartesian
Number of Axis
1
Maximum Speed
360 °/sec (Axis 1)
Maximum Payload Mass
10 kg (rated 2 kg)
Controllers
CA25-M10
Models
BA3-00D
