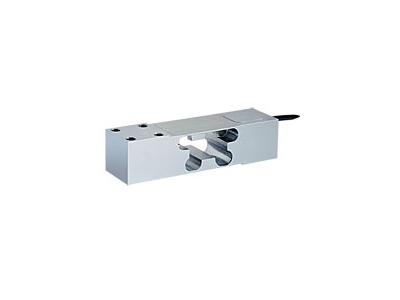

AXH

Single Point

Lorenz Messtechnik GmbH

  • Approved up to 3000d OIML R60
  • Off-Center Load Compensated
  • Tension & Compression
  • Accuracy: ±0.017% F.S. Combined Error
  • Length: 150mm
  • Width: 38mm
  • Height: 38mm

Specifications

Type
Weighing Beam
Application
Tension & Compression
Full Scale
220 lbs
550 lbs
1120 lbs
Output
2 mV/V
Precision
±0.017 % FS
Excitation
1 V - 15 V DC
IP Rating
IP69K
Min Temperature
-10 °C
Max Temperature
40 °C

Models

AXH-C3 10e
AXH-C3 12e5
