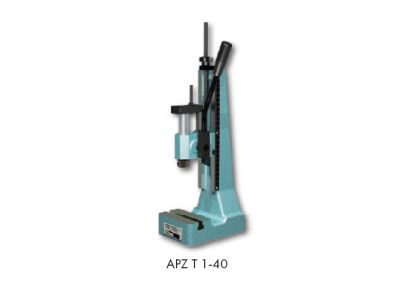

APZ T1-40

Manual Rack and Pinion press

Mäder Pressen

Manual Rack and Pinion press
Capacity: 1.5 kN
Working stroke: 40 mm
Throat: 63 mm
Daylight: 40 - 235 mm
Table size: 110 x 65 mm
Ram bore Ø x Depth: 10H7 x 25 mm

Details

APZ range

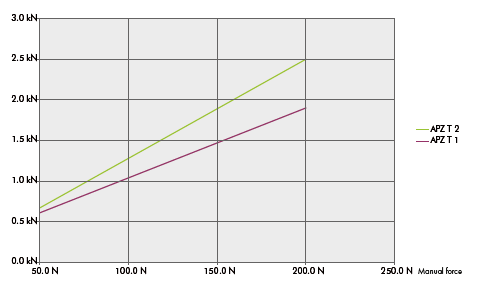

mäder rack and pinion presses transmit their force
constantly over the whole stroke length. The direct
transmission of force via the manual lever allows fine
control. Rack and pinion presses are therefore used
where a constant force characteristic over a longer
stroke is required.

Manual lever with ergonomic user comfort

- Can be turned through 360°: adaptable for any
body size and application.

- Lever angled to the side: free view of work area
and ergonomically comfortable position.

- R/L Version: simple and easy conversion for left-handers
without losing the tool setting. Ideal for job
sharing on one press.

Specifications

Type of Press

Rack and Pinion Press

Capacity

1.5 kN

Working Stroke

40 mm

Daylight Start

40 mm

Daylight End

235 mm

Table Size

110 x 65 mm

Ram Dimensions

10H7 x 25 mm

Ram Size

25 mm

Models

APZ T 1-40

APZ T 1-40 HS

APZ T 1-40 with Return travel lock

APZ T 1-40 HS MICRO

APZ T 1-40 with Return travel lock and Micrometer stop

APZ T 1-40 HS MICRO Z

APZ T 1-40 with Return travel lock, Micrometer stop and Counter

APZ T 1-40 HS Z

APZ T 1-40 with Return travel lock and Counter

APZ T 1-40 MICRO

APZ T 1-40 with Micrometer stop

APZ T 1-40 MICRO Z

APZ T 1-40 with Micrometer stop and Counter

APZ T 1-40 R/L

APZ T 1-40 Left/right-hander version

APZ T 1-40 TB

APZ T 1-40 with Table bore 12H7

APZ T 1-40 TB HS

APZ T 1-40 with Table bore 12H7 and Return travel lock

APZ T 1-40 TB HS MICRO

APZ T 1-40 with Table bore 12H7, Return travel lock and Micrometer stop

APZ T 1-40 TB HS MICRO Z

APZ T 1-40 with Table bore 12H7, Return travel lock, Micrometer stop and Counter

APZ T 1-40 TB HS Z

APZ T 1-40 with Table bore 12H7, Return travel lock and Counter

APZ T 1-40 TB MICRO

APZ T 1-40 with Table bore 12H7 and Micrometer stop

APZ T 1-40 TB MICRO Z

APZ T 1-40 with Table bore 12H7, Micrometer stop and Counter

APZ T 1-40 TB Z

APZ T 1-40 with Table bore 12H7 and Counter

APZ T 1-40 Z

APZ T 1-40 with Counter

APZ T1-40 R/L MICRO

APZ T1-40 Left/right-hander version with Micrometer stop

APZ T1-40 R/L TB

APZ T1-40 Left/right-hander version with Table bore 12H7

APZ T1-40 R/L TB MICRO

APZ T1-40 Left/right-hander version with Table bore 12H7 and Micrometer stop
