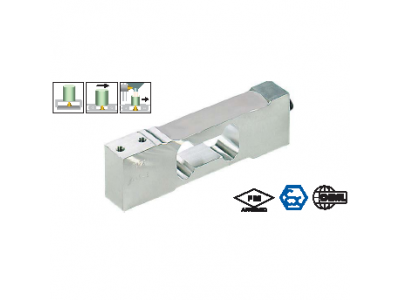

The AG is an economical, high accurate single point load cell. It is ideal for OEM applications such as electronic scales and weighing machines. The single point design is highly resistant to eccentric loading.
AG
Single point load cell
Scaime
- OIML R60 & NTEP Approvals

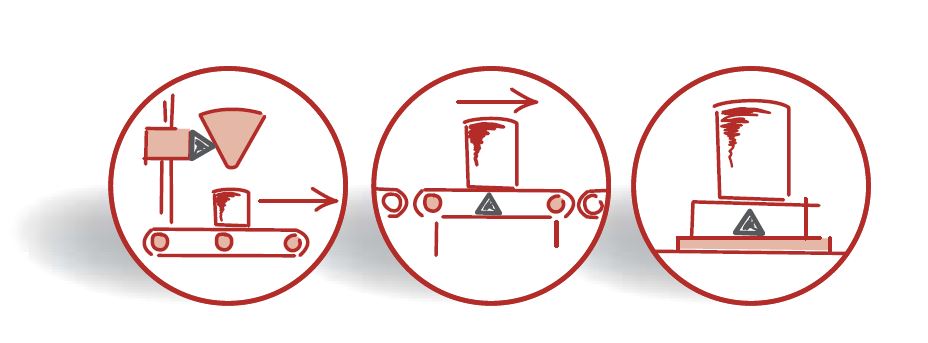

- Ideal for Single Point Scales or Batching/Dosing Machines
- Tension & Compression
- Accuracy: ±0,017% F.S.
- Length: 150mm
- Width: 25mm
- Height: 40mm
Details
Specifications
Type
Weighing Beam
Application
Tension & Compression
Full Scale
2.2 lbs
5.5 lbs
5.5 lbs
Output
2 mV/V
Precision
±0.017 % FS
Excitation
1 V - 15 V DC
IP Rating
IP65
Min Temperature
-10 °C
Max Temperature
60 °C
Models
AG-10
AG-100
AG-15
AG-2
AG-20
AG-30
AG-5
AG-50
AG-75
AG-C3 10e
AG-C3 5e
Downloads
AG, Single point load cell (5 - 100kg) Overview
