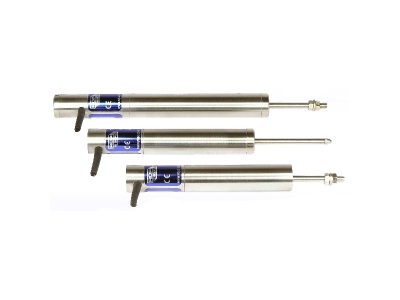

The ACT transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer.
This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensors principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life.
This series of displacement transducer is available as either an unguided, captive or spring return version.
ACT
LVDT Displacement Transducer
RDP Electrosense
- LVDT
- Available in Unguided, Guided or Return Spring Version
- Rod Profile Housing
- Stainless Steel Housing
- Connection: 2m Integral Cable (Longer Cable Available)
- High Accuracy
- High Cycle Life
Details
Specifications
Type
LVDT
Full Scale
12 mm
25 mm [0.984"]
50 mm
75 mm
100 mm
150 mm
200 mm
250 mm
375 mm
470 mm
25 mm [0.984"]
50 mm
75 mm
100 mm
150 mm
200 mm
250 mm
375 mm
470 mm
Output
V/V AC
Non-Linearity
±0.10 % FS
±0.25 % FS
±0.25 % FS
Resolution
Infinitesimal
Excitation
0.5 - 7 V AC
5 V AC
5 V AC
Min Temperature
-50 °C
Max Temperature
125 °C
Models
ACT
ACT1000
ACT10000
ACT15000
ACT18500
ACT2000
ACT3000
ACT4000
ACT500
ACT6000
ACT8000
Downloads
Related
The DR7AC is a single channel signal-conditioning unit for use with transducers requiring AC excitation and synchronous demodulation, producing a DC output voltage or current. To reduce electrical noise, system problems and the risk of...

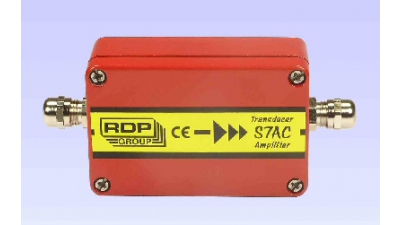

The S7AC is a signal-conditioning unit for use with transducers requiring AC excitation and synchronous demodulation, producing a DC output voltage or current. Units may be master-slaved in systems where carrier frequency beating is a...
