ACS-DUAL - discontinued

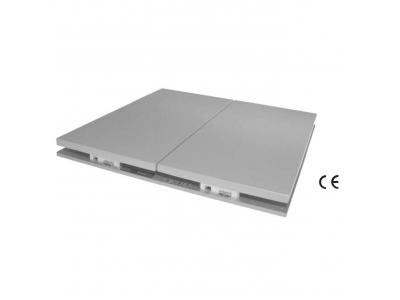

AccuSway Dual Top Balance and Postural Sway Measurement

Advanced Mechanical Technology Inc. (AMTI)

  • Consists of two separate force transducers that share a single base
  • Provides a separate surfaces for each foot
  • Interfaces with a PC via RS-232 or USB
  • Lightweight
  • Low profile

Specifications

Full Scale (Fz)
250 lbs
Fz Natural Frequency
120 Hz
Resolution
12-bit
Output
± 10 V DC
Dimensions
502 x 502 x 45 mm
Weight
30 lbs
Top Plate Material
Composite
Interface
USB
RS-232
Power Supply
9 V DC
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C

Models

ACS-DUAL

Downloads

Dual-Top AccuSway Datasheet
Datasheet
