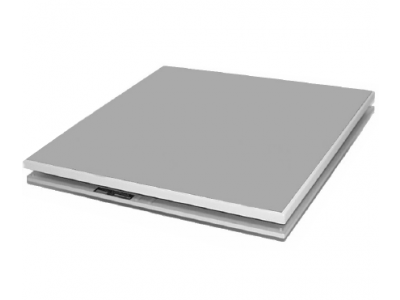

The AccuGait is a portable gait solution and is designed to pair with the optional AccuGait Walkway. The force plate uses Hall Effect sensors to accurately measure ground reaction forces while allowing for internal amplification and high overload protection on all axes. The AccuGait interfaces directly with a computer via a convenient USB or RS-232 connection.
ACG
AccuGait Gait and Balance Platform - Discontinued
Advanced Mechanical Technology Inc. (AMTI)
- Portable Gait and Balance Platform
- RS-232 Connector and USB interface
- No mounting required
- 0.2% F.S. Nonlinearity
Details
Specifications
Full Scale (Fz)
300 lbs
Fz Natural Frequency
150 Hz
Resolution
12-bit
Output
± 10 V DC
Dimensions
44 x 500 x 500 mm
Weight
25 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
7.5 V DC
110 - 240 V AC
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
AccuGait
Portable Multi-axis Platform - has been replaced by the AccuGait - Optimized Platform, ACG-O
ACG
AccuGait Multi-axis Platform - Discontinued, replaced by the AccuGait - Optimized Platform, ACG-O
ACG-O
the Optimized version of the AccuGait Platform replaces the ACG model.
