9IFC

Digital Interface

  • Supports 1 (AGI01) or 4 (AGI04) Netscanner pressure scanners
  • Provides DC power, triggering, and data communication via Ethernet
  • Compatible with Chell Netscanner and TE-PSI scanning systems
  • Ethernet port supports full duplex TCP/IP operation
  • Compact, mountable enclosures for lab or field integration
  • Optional hardware trigger input for synchronized scanning
  • Multiple AGI04 units can be combined for large networks

Details

The 9IFC interface series provides a complete Ethernet TCP/IP connection and power delivery solution for TE-PSI Netscanner pressure scanners. These units simplify the integration of scanner systems into test environments by combining data communication, DC power, and hardware triggering into a compact interface box.

  • The 9IFC-AGI01 supports a single scanner connection through a 15-pin MIL-style connector and is ideal for standalone testing, diagnostics, or mobile applications.

  • The 9IFC-AGI04 supports up to four scanners simultaneously and includes four MIL-style ports for scanner connection, shared Ethernet output, and synchronized hardware triggering.

Both models use RJ45 Ethernet for communication and a shared external power supply (24 VDC or 110–240 VAC). Data acquisition is triggered manually or via hardware input, enabling synchronized collection from multiple devices. Multiple 9IFC-AGI04 units can be networked through a standard Gigabit Ethernet switch for expanded systems.

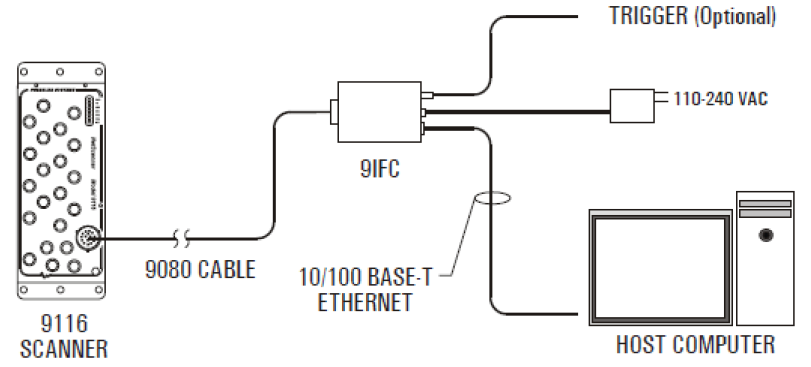

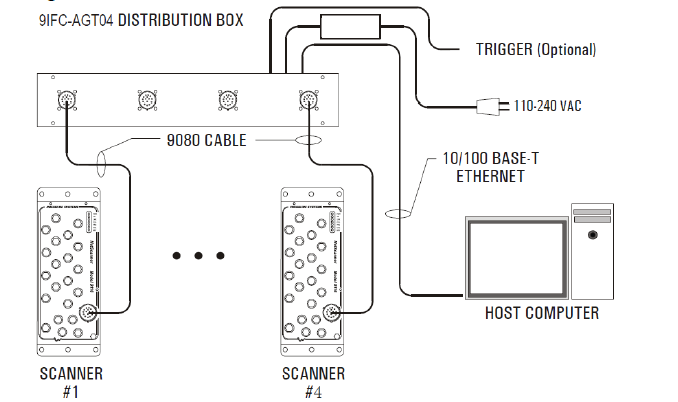

System Diagram



Models

9IFC-AGI01
Single scanner interface with 15-pin MIL connector, RJ45 Ethernet, 24 VDC/AC adapter
9IFC-AGI04
4-port distribution interface for scanner networks, shared power and Ethernet output
