Model 90061 is a self contained, portable measurement system which allows auditing of the pinch force generated between the electrodes of resistance spot welders. Resistance welding uses a pair of electrodes to clamp two base metals firmly together prior to and during application of electrical current. Poorly clamped parts result in a defective joint. A correctly clamped assembly aids in reducing the resistance in the joint and allows the current flow to properly heat the base metals to weld the part.
90061

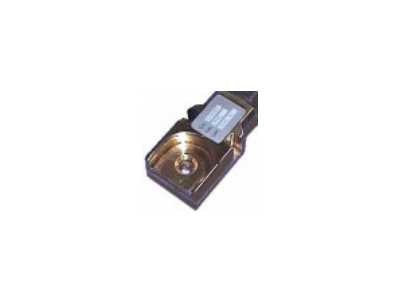

Weld Tip Force Load Cell
- Hand Held Weld Tip Load Cell with Battery Powered Indicator
- Rotating and pivoting beryllium copper sensor head for optimum assessibility
- Single button operation
- Optional two-piece construction
- Custom Designs for Projection tip sensing element possible
- Contact us for more information
Details
Specifications
Type
Weld Force
Application
Compression
Full Scale
300 lbs
1000 lbs
3000 lbs
5000 lbs
10000 lbs
1000 lbs
3000 lbs
5000 lbs
10000 lbs
Output
4.5 V DC
Precision
±0.5 % FS
Excitation
3 V DC
Min Temperature
5 °C
Max Temperature
40 °C
Models
90061-AHOO
3,000 lbs Weld Force Gage
90061-BHOO
1,000 lbs Weld Force Gage
Downloads
90061, Weld Tip Force Load Cell
