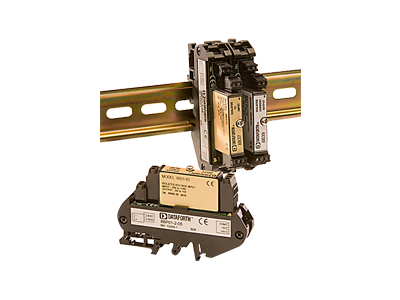

8B49

Voltage Output Module

Dataforth

Voltage Input Module
1500 V Isolation
Accuracy: ± 0.05%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 40 V AC Continuous

Specifications

Family

Dataforth 8B

Input Type

0 - 5 V DC
0 - 10 V DC
±5 V DC
±10 V DC

# of Inputs

1

Output Type

0 - 5 V DC
0 - 10 V DC
±5 V DC
±10 V DC

Bandwidth

100 Hz

Isolation

Yes

Supply Power

5 V DC

Models

8B49-01

0-5 V Input, ± 5 V Output

8B49-02

± 5 V Input, ± 5 V Output

8B49-03

± 5 V Input, 0-5 V Output

8B49-04

0-10 V Input, ± 10 V Output

8B49-05

± 10 V Input, ± 10 V Output

8B49-06

± 10 V Input, 0-10 V Output

8B49-07

± 5 V Input, ± 10 V Output
