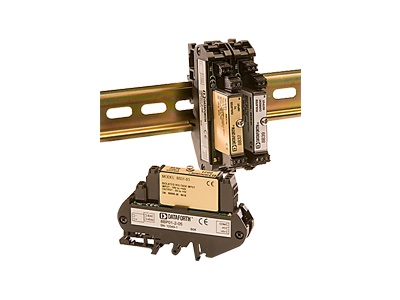

8B45

Frequency Input Analog Signal Conditioner Modules

Dataforth

  • Frequency Input Module
  • 1500 V Isolation
  • Accuracy: ± 0.10%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
Frequency
# of Inputs
1
Output Type
0 - 5 V DC
Excitation
5 V DC
Isolation
Yes
Supply Power
5 V DC

Models

8B45-01
0-500 Hz Input, 0-5 V Output
8B45-02
0-1 kHz Input, 0-5 V Output
8B45-03
0-2.5 kHz Input, 0-5 V Output
8B45-04
0-5 kHz Input, 0-5 V Output
8B45-05
0-10 kHz Input, 0-5 V Output
8B45-06
0-25 kHz Input, 0-5 V Output
8B45-07
0-50 kHz Input, 0-5 V Output
8B45-08
0-100 kHz Input, 0-5 V Output
