8B43

DC LVDT Input Analog Signal Conditioner Modules

Dataforth

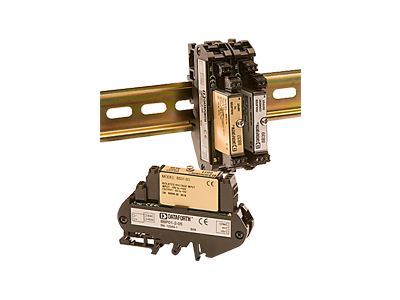

DC LVDT Input Module
1500 V Isolation
Accuracy: ± 0.05%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 240 V AC Continuous

Specifications

Family

Dataforth 8B

Input Type

±1 V DC
±2 V DC
±3 V DC
±4 V DC
±5 V DC

# of Inputs

1

Output Type

0 - 5 V DC
±5 V DC

Bandwidth

1 kHz

Excitation

10 V DC

Isolation

Yes

Supply Power

5 V DC

Models

8B43-01

± 1 V Input, ± 5 V Output

8B43-02

± 2 V Input, ± 5 V Output

8B43-03

± 3 V Input, ± 5 V Output

8B43-04

± 4 V Input, ± 5 V Output

8B43-05

± 5 V Input, ± 5 V Output

8B43-11

± 1 V Input, 0-5 V Output

8B43-12

± 2 V Input, 0-5 V Output

8B43-13

± 3 V Input, 0-5 V Output

8B43-14

± 4 V Input, 0-5 V Output

8B43-15

± 5 V Input, 0-5 V Output
