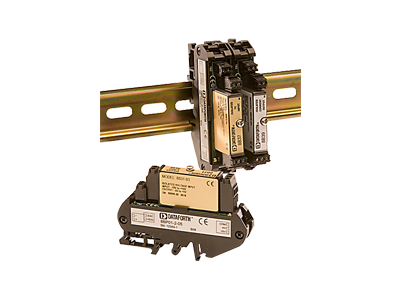

8B41

Voltage Input Analog Signal Conditioner Modules

Dataforth

  • Voltage Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.05%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
±1 V DC
±5 V DC
±10 V DC
±20 V DC
±40 V DC
±60 V DC
# of Inputs
1
Output Type
0 - 5 V DC
±5 V DC
Bandwidth
1 kHz
Isolation
Yes
Supply Power
5 V DC

Models

8B41-01
± 1 V Input, ± 5 V Output
8B41-02
± 5 V Input, ± 5 V Output
8B41-03
± 10 V Input, ± 5 V Output
8B41-04
± 1 V Input, 0-5 V Output
8B41-05
± 5 V Input, 0-5 V Output
8B41-06
± 10 V Input, 0-5 V Output
8B41-07
± 20 V Input, ± 5 V Output
8B41-08
± 20 V Input, 0-5 V Output
8B41-09
± 40 V Input, ± 5 V Output
8B41-10
± 40 V Input, 0-5 V Output
8B41-12
± 60 V Input, ± 5 V Output
8B41-13
± 60 V Input, 0-5 V Output
