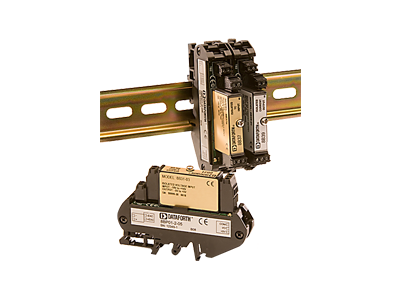

8B37

Thermocouple Input Analog Signal Conditioner Modules

Dataforth

  • Non-Linearized Thermocouple Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.05%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
Thermocouple
# of Inputs
1
Output Type
0 - 5 V DC
Bandwidth
3 Hz
Isolation
Yes
Supply Power
5 V DC

Models

8B37J
J-Type Thermocouple, -100 to 760°C Input, 0-5 V DC Output
8B37K
K-Type Thermocouple, -100 to 1350°C Input, 0-5 V DC Output
8B37R
R-Type Thermocouple, 0 to 1750°C Input, 0-5 V DC Output
8B37S
S-Type Thermocouple, 0 to 1750°C Input, 0-5 V DC Output
8B37T
T-Type Thermocouple, -100 to 400°C Input, 0-5 V DC Output
