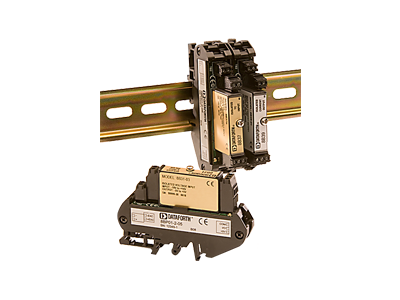

8B35

4 Wire RTD Analog Signal Conditioner Modules

Dataforth

  • Linearized 4-Wire RTD Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.10°C to ± 0.45°C
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
RTD
# of Inputs
1
Output Type
0 - 5 V DC
Bandwidth
3 Hz
Isolation
Yes
Supply Power
5 V DC

Models

8B35-01
100 Ω Pt, -100 to 100°C Input, 0-5 V DC Output
8B35-02
100 Ω Pt, 0 to 100°C Input, 0-5 V DC Output
8B35-03
100 Ω Pt, 0 to 200°C Input, 0-5 V DC Output
8B35-04
100 Ω Pt, 0 to 600°C Input, 0-5 V DC Output
