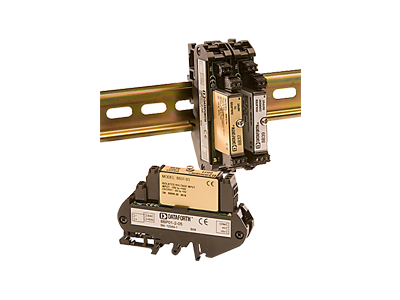

8B32

Current Input Analog Signal Conditioner Modules

Dataforth

  • Current Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.05%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 8B
Input Type
0 - 20 mA
4 - 20 mA
# of Inputs
1
Output Type
0 - 5 V DC
Bandwidth
3 Hz
Isolation
Yes
Supply Power
5 V DC

Models

8B32-01
4-20 mA Input, 0-5 V Output
8B32-02
0-20 mA Input, 0-5 V Output
