8712

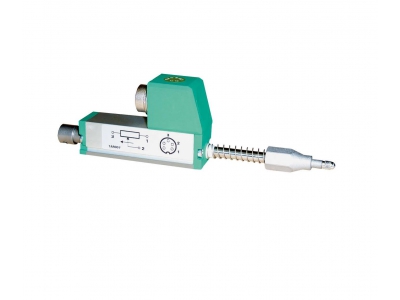

Potentiometric Linear Displacement Sensor

Burster Praezisionsmesstechnik Gmbh

  • Potentiometer
  • Rectangular Profile Housing
  • Anodized Aluminium Housing
  • Connection: 5-pin 9991 Plug Connector
  • Durability: 10^8 Operations

Details

Due to the technology employed in potentiometric displacement sensors, they always operate with a sliding contact system. Special processes are applied to give the resistance tracks low friction, low tendency to stick/slip, resistance to
abrasion and a long-term stability.

The rods are guided in long-life, low friction sliding bearings with close tolerances which provide high durability and measuring quality. The pre-stressed spring presses the sensor tip against the measurement object. This spring is
double-guided and disappears in the probe head, if the rod is in its end position.

The probe tip consists of a ball made of stainless steel. The bore at rod end serves for coupling retraction units.

The rod is protected against twist for measurement ranges up to 50 mm. The probe tip (hexagonal) must not be turned by any tool, otherwise its anti-twist protection will be destroyed.







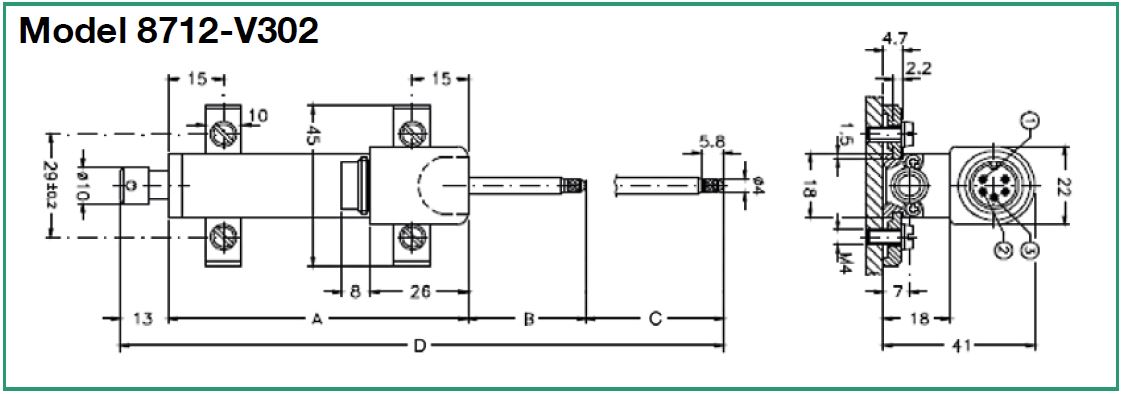

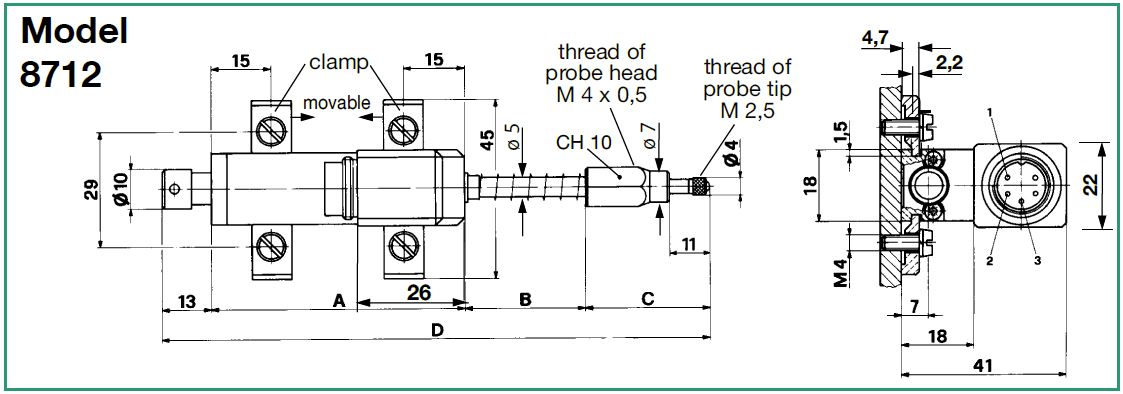

Specifications

Type
Potentiometer
Full Scale
10 mm
25 mm [0.984"]
50 mm
100 mm
125 mm
150 mm
Output
Potentiometric
Non-Linearity
±0.05 % FS
±0.10 % FS
±0.20 % FS
±0.30 % FS
Resolution
0.01 mm

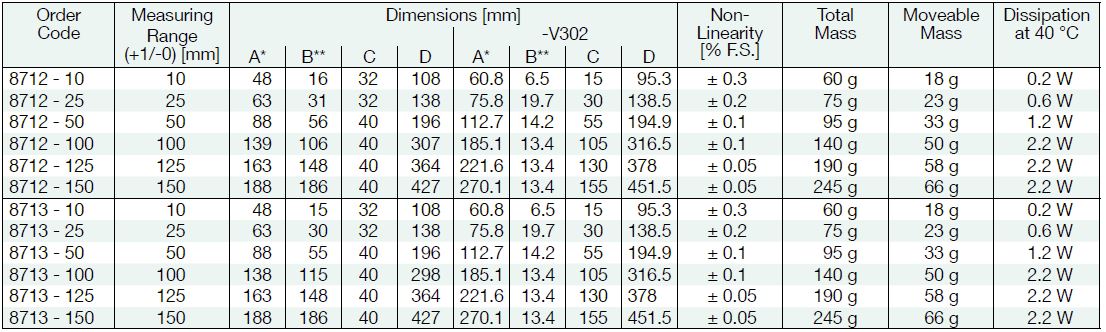

Models

8712-10
10 mm Range
8712-100
100 mm Range
8712-125
125 mm Range
8712-150
150 mm Range
8712-25
25 mm Range
8712-50
50 mm Range
8713-10
10 mm Range
8713-100
100 mm Range
8713-125
125 mm Range
8713-150
150 mm Range
8713-25
25 mm Range
8713-50
100 mm Range

Related

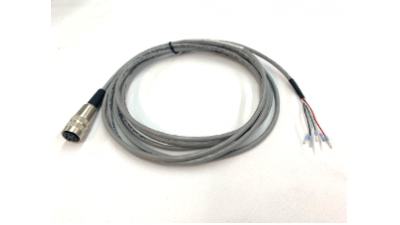

IB011

These cables are typically used for mating connectors for Displacement Sensors, Encoders and a wide range of other sensors. The cable is typically low capacitance 24AWG cable, with 4 or 6 conductors, available in lengths from 3 ft. up to 100 ft.

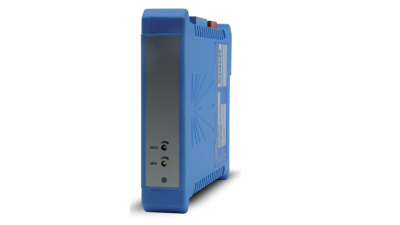

OMX 39DU

The OMX 39 model series are low-price and simple analog transmitters with mounting to 35 mm wide DIN rail. Transmitters have galvanic separation with isolation voltage of 600 V and thus they are suitable as primary isolation.

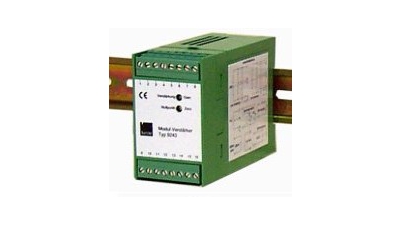

9243

The 9243 is a highly accurate precision amplifier that performs the amplification of the sensor signal being applied. Current and voltage outputs are available simultaneously. The sensor excitation is performed by the amplifier module itself...

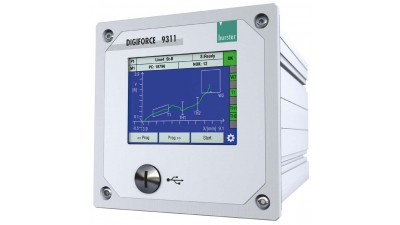

9311

DIGIFORCE 9311 is the new benchmark for economic quality control. It monitors processes in which precisely defined functional relationships between two measured process-relevant quantities need to be demonstrated.

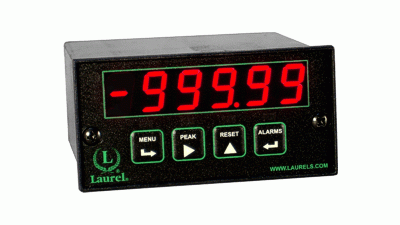

L-DC
