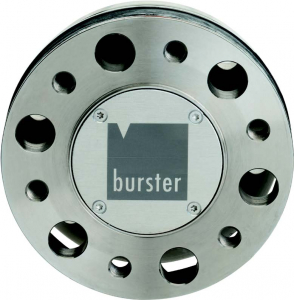

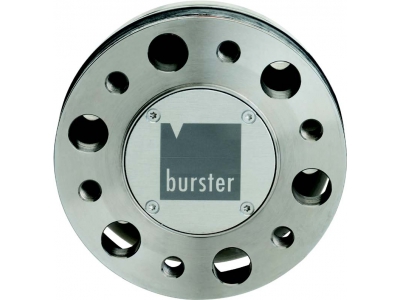

The 8670 rotary flanged torque sensor consists of the sensor (rotor), receiver (stator) and evaluation electronics. A 10-meter connecting cable from the stator to the evaluation electronics is included. Torque is measured via the torsion of the rotor using strain gages. Transmission is wireless and fully contactless. As there is no bearing, the sensor is maintenance free.
8670
Precision Flange Mount Torque Sensor
Burster Praezisionsmesstechnik Gmbh
- Measuring ranges from 0 ... 100 N.m up to 0 ... 5000 N.m
- High Rotational Speeds , up to 20,000RPM
- Linearity error ≤ 0.05 % F.S.
- Flange connection with DIN hole pattern
- Output signal 0 ... ±10 V, as a frequency or CANbus
Details
Specifications
Type
Rotary
Full Scale
100 Nm
200 Nm
500 Nm
1000 Nm
2000 Nm
3000 Nm
5000 Nm
200 Nm
500 Nm
1000 Nm
2000 Nm
3000 Nm
5000 Nm
Max Speed
20000 RPM
Output
±10 V DC
USB
USB
Precision
±0.10 % FS
Min Temperature
-15 °C
Max Temperature
70 °C
Models
8670
Precision Flange Mount Torque Sensor
Accessories
9900-K501
Connecting cable for X10: Power supply / frequency output, one end open, length 5 meters
9900-K502
Connecting cable for X11: Analog / CAN / alarm / input, one end open, length 5 meters
9900-K605
Connecting cable stator to evaluation unit, length 5 meters
9900-K610
Connecting cable stator to evaluation unit, length 10 meters (included with device)
9900-K615
Connecting cable stator to evaluation unit, length 15 meters
9900-K620
Connecting cable stator to evaluation unit, length 20 meters
9900-K625
Connecting cable stator to evaluation unit, length 25 meters
9900-K630
Connecting cable stator to evaluation unit, length 30 meters
9900-V680
Mating connector for X10 (included with device)
9900-V681
Mating connector for X11 (included with device)
