Due to the 8561`s sensor body made from a block with its special structure, the sensor has a very high degree of dimensional accuracy and low crosstalk between the two forces.
With it`s special design, the sensor has excellent linearity properties and is designed for a long service life in dynamic applications.
The two independent signal connections allow flexible adaptation and further processing.
8561

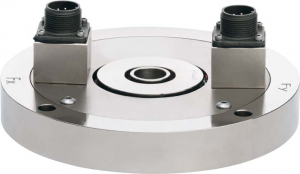

2-Axis Load Cell, XY Force Sensor
Burster Praezisionsmesstechnik Gmbh
- Measuring ranges:
- 0 ... 4448 N / 0 ... 2224 N (0 ... 1000 lbs / 0 ... 500 lbs)
- 0 ... 8896 N / 0 ... 4448 N (0 ... 2000 lbs / 0 ... 1000 lbs)
- Other measuring ranges are available on request
- Non-linearity < 0.1 % F.S.
- Low cross talk < 0.75 % F.S.
- High dimensional accuracy, because sensor is made from one part
Details
Specifications
Type
Multi-Axis
# of Axis
2 (Fx, Mx)
Application
Tension & Compression
Full Scale
1000 lbs
2000 lbs
2000 lbs
Output
2 mV/V
Precision
±0.1 % FS
Excitation
1 V - 10 V DC
Models
8561
2-Axis Load Cell
