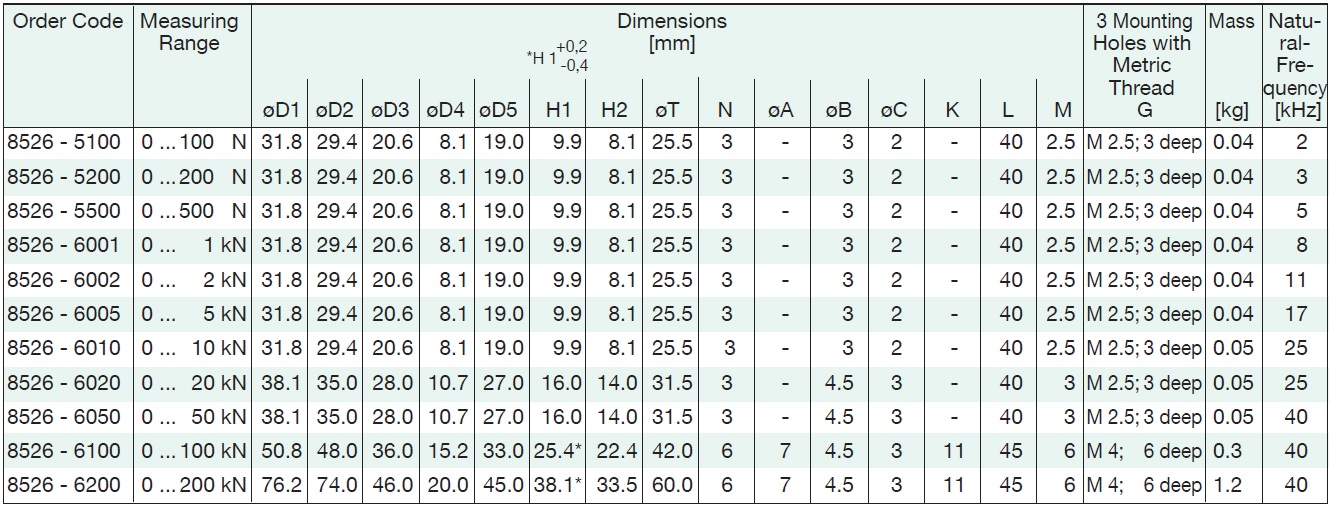

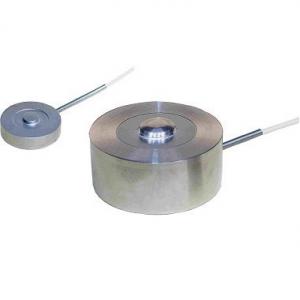

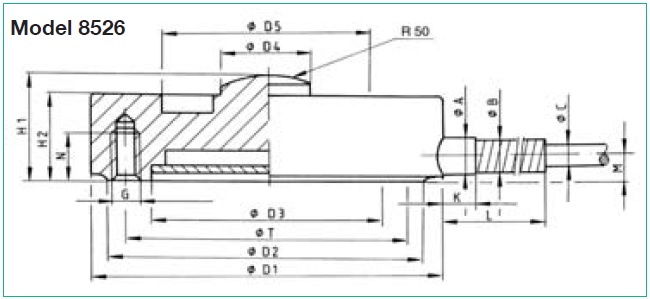

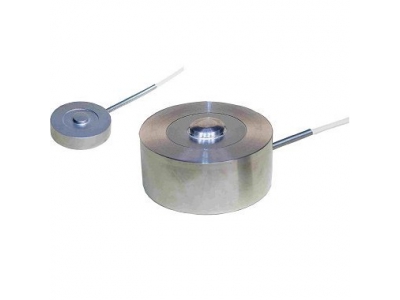

The Burster model, 8526 load cell is designe
d as a flat, circular disc. 4 strain gauges are applied at the measuring element of the sensor body. The measuring element inside the body carries a strain gauge full bridge which outputs a voltage directly proportional to the measurement variable on the application of a force.
The load application knob for receiving compressive forces is an integral part of the sensor. The compressive force must be applied with a part that leans on a sensor parallel plain with reference to the application knob. This ensures only
minor influence of smaller angle faults between the force application and the sensor axis to the measurement signal. Basically the measurement force must be applied centrically without any lateral vectors of force.
A ground bearing surface for the sensor as well as a hardness of at least 60 HRC of the bearing surface of the force application are precondition for an optimum in measurement quality.
The standardized nominal value (1 mV/V) simplifies the exchange of sensors. Furthermore the sensors can be switched parallel for the summation of singular forces.
