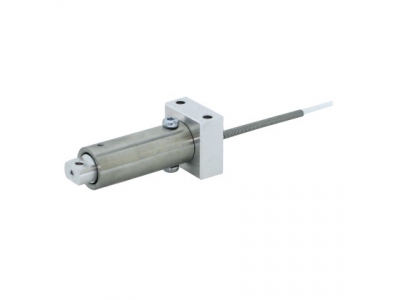

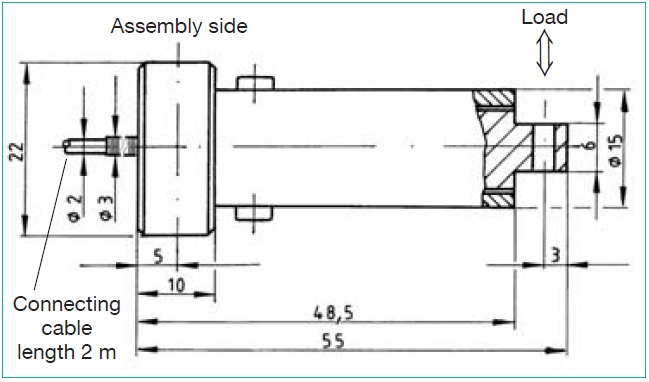

The Burster sensor element consists of a double bending beam with applied strain gauges. Changes in the ohmic resistance of the strain gauge full bridge caused by applied forces are converted into electrical voltages. The precise value(characteristic value) of the output voltage, resulting from the application of a rated force to the sensor, is specified in the accompanying calibration protocol. The sensor has to be mounted by two screws on the cable side. The opposite is meant to receive applied forces (loads). Once the rated stress or strain is exceeded by 20%, further deflection of the bending beam is prevented by an integrated, mechanical stop. This protects the sensor element against permanent deformation.
