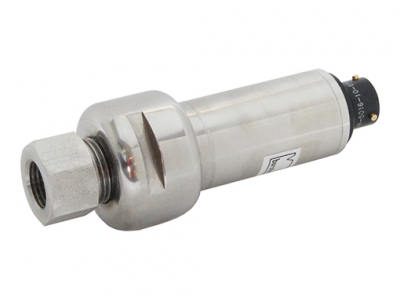

The Model 8221 High Pressure Transducer excels in environments requiring precise high-pressure measurements, such as hydraulic circuits and water-jet cutting equipment. Built to withstand dynamic loading, this sensor is fitted with a monolithic sensor membrane that enhances safety and reliability by preventing medium contact with weld seams. It operates effectively across a broad measurement range from 0 to 5000 bar with an accuracy of ≤ 0.2 % F.S.
The sensor's design includes relief holes that allow for the measurement of both static and dynamic pressures under adverse conditions. For ease of integration and maintenance, the sensor's sensitivity is standardized at 1.0 mV/V. An integrated shunt resistor facilitates easy calibration or verification of subsequent electronics without needing recalibration. Optional integrated amplifiers (0 ... 10 V, 0 ... 5 V, and 4 ... 20 mA) and the innovative digital calibration function, activated by a magnetic pen, further enhance usability and performance.
Dimensional drawing

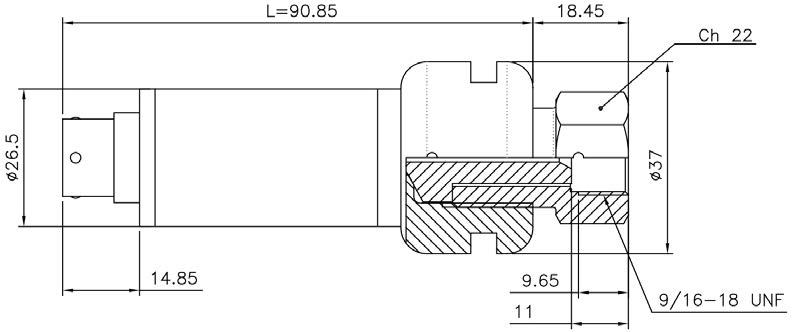

Connection F-250-C (9/16-18UNF internal thread)

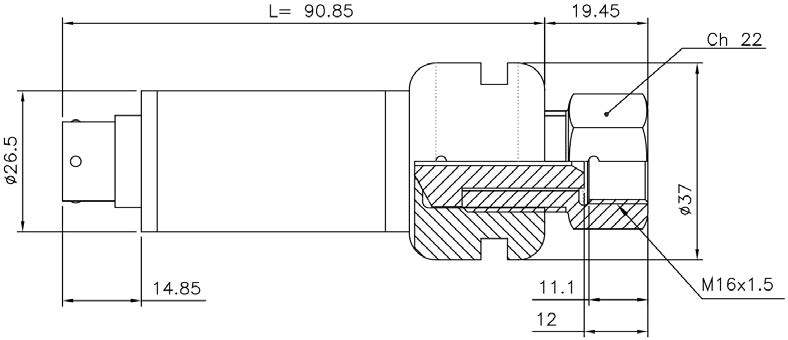

Connection M 16 x 1.5 internal thread
