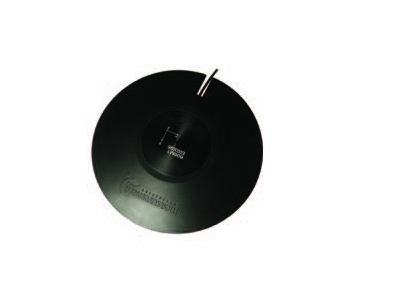

The Model 606M1 Accelerometer is a state-of-the-art MEMS triaxial seat pad accelerometer, expertly crafted to measure both static and dynamic responses for the precise characterization of whole body vibration, adhering to the requirements of ISO 2631-1 and ISO 8041. Its silicon MEMS sensors provide a DC response, essential for accurately determining velocity and displacement from raw acceleration data. This model stands out with its integral temperature compensation, ensuring stable outputs across a broad operating temperature range. Equipped with an on-board voltage regulation circuit, the 606M1 is compatible with power supplies ranging from 8 to 32Vdc, making it a versatile tool for comprehensive vibration analysis. Its adherence to the ISO 10326-1 configuration further underscores its suitability for a wide array of applications requiring meticulous vibration assessment.

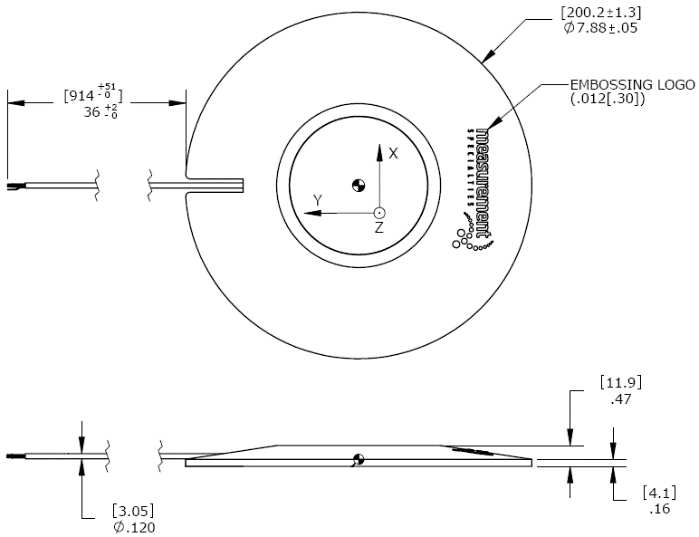

DIMENSIONS
