5M70

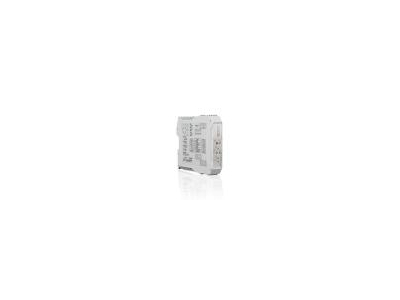

DC Strain Gage Conditioner

Daytronic Corp.

  • Remotely sensed excitation, user-selectable
  • Chopper-stabilized low-drift amplification
  • Configurable low-pass active filtering
  • Shunt switch-based calibration
  • Wide range Zero & Span adjustments

Details

The Model 5M70 DIN unit is a low cost, general-purpose single-channel conditioner for input of pressure, force, torque, weight, and other variables measured by conventional DC-excited strain gage transducers. The 5M70 delivers filtered analog output of ±5 Vdc ±10 Vdc or 4-20 mA; switch selectable by the user. Advanced analog design directly addresses the problem of measurement inaccuracy in industrial environments of high electromechanical noise. Exceptional signal stability and accuracy over a remarkably wide range of sensor inputs .

Specifications

Input Type
Strain Gauge
# of Inputs
1
Output Type
±5 V DC
±10 V DC
4 - 20 mA
Max Bandwidth
5 kHz
Excitation
2.5 V DC
5 V DC
Isolation
No
Supply Power
12 - 28 V DC

Models

5M70
DC Strain Gage Conditioner

Downloads

5M70, DC Strain Gage Conditioner
Datasheet
