5346A

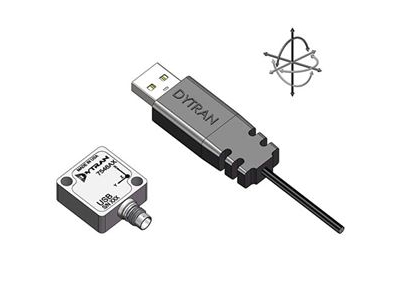

Dytran's USB powered, digital, 6 degrees of freedom sensor combines a 3-axis MEMS accelerometer, 3-axis gyroscope, and onboard temperature sensor with a microcontroller to create a smart sensor. The VibraScout 6D™ is a plug-and-play, cost effective, portable data acquisition system. Measure X,Y,Z acceleration, roll, pitch, yaw and temperature using a laptop or tablet.

The Dytran model 5346A1/A2 is a unique and innovative solution for fast, portable and cost effective vibration surveys and data acquisition. Easy to install software allows for real time, three-directional vibration data acquisition (including static inclination), three-directional orientation data acquisition (gyroscope) along with real-time temperature monitoring. The system stores acceleration, gyro and temperature information, and the built-in firmware handles USB communication and provides a number of unique features including storage of device serial number and storage of accelerometer, gyro and temperature calibration data.

Model 5346A1/A2 System Consists of:

(1) Model 7546A1/A2, USB powered triaxial accelerometer, 14g range
(1) Model 6330A15, 15-foot cable assembly, 4-pin to USB
(2) Model 6247 mounting screws (6-32)
(2) Model 6688 mounting screws (M3)
(2) Model 9006 Software Toolkit

Minimum Computer System Requirements:

- Desktop or laptop x86 based personal computer
- Operating Systems: Windows Vista/Seven/Win8 32- bit
- RAM: 4 GB
- Hard disk space: 1 GB
- USB 2.0
- Display resolution 1280x780
