4530

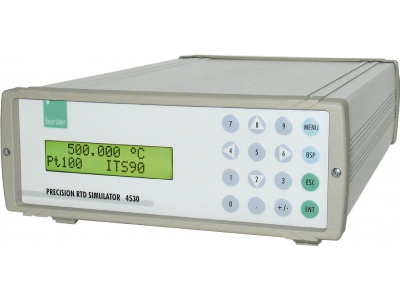

The equipment comes in a sturdy aluminium housing. The keyboard and display are located at the front panel. 2-, 3- and 4-wire connections are possible at the back side.

Pt100, Pt200, Pt500, Pt1000, Ni100 or Ni1000 can be selected by simple menu navigation. In addition, the selection of temperature scales ITS 90 (DIN EN 60751) or IPTS 68 (DIN 43760) and two coefficients α = 0.385 (European) or α = 0.392 (US) is
possible.

After entry of the characteristic values the input of the temperature levels can be made very simple by the numeric keyboard. Presently set values are indicated in the display.

Relays with low thermovoltage and stable foil resistances with very small temperature coefficients are the heart of the simulator.
