For the first time, the newly developed DIGISTANT® makes it possible to calibrate mechanical magnitudes such as force, torque or displacement using a single calibrator, in addition to the usual electrical and thermal magnitudes.
What makes this versatile calibrator stand out from its class is its capacity to generate the extensive and comprehensive documentation that is necessary nowadays for any calibration.
The DIGICAL software allows the calibration results to be downloaded from the DIGISTANT® for the purposes of documentation and logging. Up to 21 measurements per device for up to 50 devices can be stored in non-volatile memory. The tested items can also be classified as „Good/Bad“ according to the error tolerances permitted for the device.
In addition, it is possible to group measurements together according to the initial check (as found) and after adjustment
(as left).

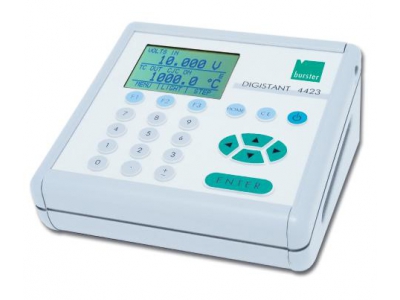

Measurement and sourcing for 13 thermocouple models, 13 RTD models, resistance, current, voltage, frequency, impulse, pressure, force, torque and displacement make the model 4423 a complete, universal calibrator. Arrow keys, the direct input of numerical values and 3 function keys for operator control, plus generous background illumination and menu operation through a large graphic display create a powerful, self-explanatory user interface. The DIGISTANT® model 4423 has a robust aluminum console housing.
The builtin NiMH battery is protected against overcharging and deep discharge. The device can also operate in buffer mode using the mains adapter provided. The universal calibrator is supplied complete with its plug-in mains adapter, test certificate with traceability certification and measuring cable.
What makes this versatile calibrator stand out from its class is its capacity to generate the extensive and comprehensive documentation that is necessary nowadays for any calibration.
The DIGICAL software allows the calibration results to be downloaded from the DIGISTANT® for the purposes of documentation and logging. Up to 21 measurements per device for up to 50 devices can be stored in non-volatile memory. The tested items can also be classified as „Good/Bad“ according to the error tolerances permitted for the device.
In addition, it is possible to group measurements together according to the initial check (as found) and after adjustment
(as left).
Measurement and sourcing for 13 thermocouple models, 13 RTD models, resistance, current, voltage, frequency, impulse, pressure, force, torque and displacement make the model 4423 a complete, universal calibrator. Arrow keys, the direct input of numerical values and 3 function keys for operator control, plus generous background illumination and menu operation through a large graphic display create a powerful, self-explanatory user interface. The DIGISTANT® model 4423 has a robust aluminum console housing.
The builtin NiMH battery is protected against overcharging and deep discharge. The device can also operate in buffer mode using the mains adapter provided. The universal calibrator is supplied complete with its plug-in mains adapter, test certificate with traceability certification and measuring cable.
