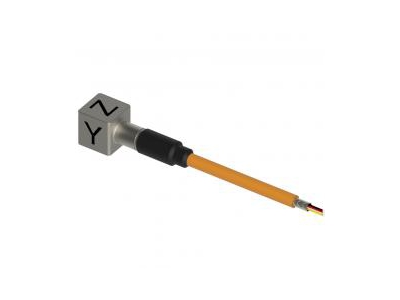

The Dytran series 3623 is a unique, IEPE, case isolated, IP68 rated (submersed to 175 psi) triaxial accelerometer, weighing just 18 grams. This rugged, low noise accelerometer was designed for vibration monitoring in submersible applications. Its small size makes it easy to mount in spaces inaccessible to other types of accelerometers. Featuring a hermetically sealed titanium case and a non-removable, water blocked molded cable for zero water ingress, even at depth. TEDS models are available within the series. This function allows the user to query each sensor in a large array during field testing. This feature provides model number, serial number, sensitivity and other attributes using a TEDS compatible signal conditioner/data acquisition system.
Available with sensitivities ranging from 10–100 mV/g, design of the Dytran series 3623 incorporates the latest in piezoceramic planar shear technology coupled with 2–wire internal IEPE electronics. This lightweight sensor is packaged in a robust, titanium housing, with 10–32 mounting capabilities and a molded integral cable terminating to flying leads. Units are case isolated to prevent ground loop interference.
