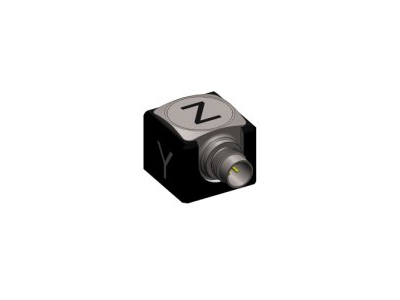

3333M1T/M2T/M3T

The Dytran 3333MT series is a miniature IEPE triaxial accelerometer with a low end frequency response of 0.65 Hz, for excellent phase response at low frequencies. Models 3333M1T/M2T/M3T have a vertical height of 0.35 inches (9.0 millimeters)

The distinguishing characteristic of models 3333M1T/M2T/M3T is its exclusive, Dytran designed 4-pin radial connector. Compared to the industry standard connector (1/4-28 thread size), the 3333MT series incorporates a M4.5 x 0.35 connector that is approximately 20% smaller in size. This substantial size difference allows for a more flexible, lightweight cable, a smaller diameter for the connector, and also contributes to the overall small size of the accelerometer.

Available with a 5 mV/g up to 25 mV/g sensitivity, the Dytran 3333MT series features ceramic shear sensing elements coupled with ultra low noise JFET electronics, packaged in a robust laser welded titanium housing. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference. Units incorporate Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities for larger channel count applications.

Recommended Accessories: model 4114B1 current source power unit, model 6273 petro mounting wax

Compatible Cables: 6893A, 6895A, 6948A, 6949A, 6975A
