The Dytran 3326A series is a low noise accelerometer, ideally suited for use in flight testing applications, and is compatible with standard on-board power supplies (+20 to +32 VDC). Sensors are part of Dytran’s line of VDC powered instrumentation, and as such, may be compatible with existing installations of other manufacturer’s which use similar principles.

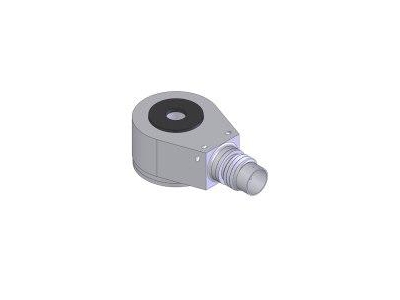

Available with a sensitivity of 10 mV/g up to 100 mV/g, the Dytran model 3326A1 features a ceramic sensing element operating in shear mode, packaged in a rugged titanium housing. Design of the 3326A1 incorporates a 1/4-28 4-pin radial connector and miniature thru hole mounting, which allows for the sensor to be turned 360° prior to securing, aiding the user during sensor installation. The Dytran 3326A series weighs 10 grams, is hermetically sealed for reliable operation in high humidity and dirty environments, and case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6247 mounting screw (6-32)
Compatible Cables: 6937A
3326A
Flight Test Accelerometer
Dytran Instruments Inc.
- Compatible with standard aircraft on-board power supplies (+20 to +32 VDC)
- 360° cable orientation
- 10 mV/g and 100 mV/g sensitivity available
- 50g and 500g range available
- 4 to 2,000 Hz frequency range (±5%)
- 1/4-28 4-pin radial connector
- Ø.14 thru hole mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
500 g
Output
10 mV/g
100 mV/g
100 mV/g
Excitation
20 - 32 V DC
Material
Titanium
Mounting
Thru Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
107 °C
Models
3326A1
10 mV/g, 500g range
3326A2
100 mV/g, 50g range
