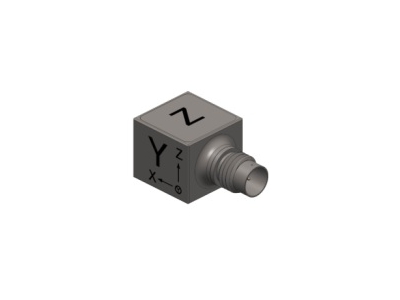

The Dytran model 3263A series is a miniature IEPE triaxial accelerometer with an overall weight of 5.6 grams.
Available with a sensitivity of 10 mV/g up to 100 mV/g, design of the Dytran model 3263A series features ceramic shear sensing elements, coupled with low noise electronics and packaged in a lightweight titanium housing. The accelerometers offer a broad frequency response with an industry standard 4-pin connector and 4-40 stud mounting. Units are hermetically sealed for reliable operation in harsh and dirty environments.
Supplied Accessories: (1) model 6721 mounting stud (4-40 to 4-40)
Recommended Accessories: model 4114B1 current source power unit, model 6714 isolated mounting base, model 6729 magnetic mounting base
Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
