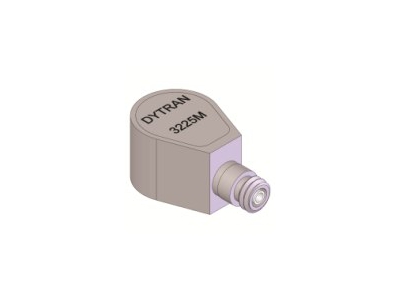

The Dytran 3225MT series is an ultra miniature teardrop low profile IEPE accelerometer with a sensitivity of 50 mV/g or 100 mV/g and IEEE 1451.4 TEDS capabilities, designed to adhesively mount in spaces typically inaccessible to other types of accelerometers. The sensor has an overall height of 0.22-inches (5.5-millimeters) and weighs from 0.85 grams up to 1.1 grams.
Featuring a ceramic shear sensing element in a lightweight titanium housing, the model 3225MT series utilizes a specially designed 3-56 coaxial connector, mating with a 3-foot (0.9-meter) replaceable coaxial cable and terminating to a 10-32 jack. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Supplied Accessories: (1) model 6003A03 cable assembly, (1) model 6298 petro mounting wax, (1) model 6591A installation/removal wrench
Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6011A
3225M23T/24T
Miniature IEPE Accelerometer with TEDS
Dytran Instruments Inc.
- IEPE
- IEEE 1451.4 TEDS capabilities
- Ultra miniature teardrop design
- 50 mV/g or 100 mV/g sensitivity
- 50g or 100g range
- 2 to 10,000 Hz (±10%)
- 3-foot (0.9-meter) removable cable
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
100 g
100 g
Output
50 mV/g
100 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
Connection
Removable Cable
3-56 Coaxial
3-56 Coaxial
Min Temperature
-51 °C
Max Temperature
104 °C
Models
3225M23T
50 mV/g, 100g range
3225M24T
100 mV/g, 50g range
