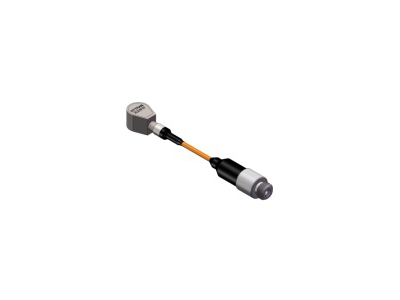

The Dytran 3225FT series is an ultra miniature teardrop low profile IEPE accelerometer with a sensitivity of 1 mV/g up to 10 mV/g and IEEE 1451.4 TEDS capabilities, designed to adhesively mount in spaces typically inaccessible to other types of accelerometers. The sensor has an overall height of 0.22-inches (5.6-millimeters) and weighs just 0.85 grams.
Featuring a quartz shear sensing element in a lightweight titanium housing, the models 3225F1T/F4T utilize a specially designed 3-56 coaxial connector, mating with a 3-foot (0.9-meter) replaceable coaxial cable and terminating to a 10-32 jack. The model 3225F5T mates with a 17-foot (5.2-meter) replaceable coaxial cable. Units are hermetically sealed for reliable operation in a high humidity and dirty environments.
Supplied Accessories: (1) model 6298 Petro mounting wax, (1) model 6591A installation/removal wrench, (1) model 6003A17 cable assembly (3225F5T), (1) model 6003A03 cable assembly (3225F1T)
Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6011A
3225FT
Miniature Accelerometer with TEDS
Dytran Instruments Inc.
- IEPE
- IEEE 1451.4 TEDS capabilities
- Ultra miniature teardrop design
- 1 mV/g, 10 mV/g sensitivity
- 500g, 5000g range
- 1.6 to 10,000 Hz (±10%)(3225F1T)
- 1 to 10,000 Hz (±10%) (3225F4T/F5T)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
5000 g
5000 g
Output
1 mV/g
10 mV/g
10 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
Connection
Removable Cable
3-56 Coaxial
3-56 Coaxial
Min Temperature
-51 °C
Max Temperature
82 °C
121 °C
121 °C
Models
3225F1T
10 mV/g, 500g range, 3-foot (0.9-meter) removable cable, 1.6 to 10,000 Hz (±10%)
3225F4T
1 mV/g, 5000g range, 3-foot (0.9-meter) removable cable, 1 to 10,000 Hz (±10%)
3225F5T
10 mV/g, 500g range, 17-foot (5.2-meter) removable cable, 1 to 10,000 Hz (±10%)
