3225F/F1/F2/F3

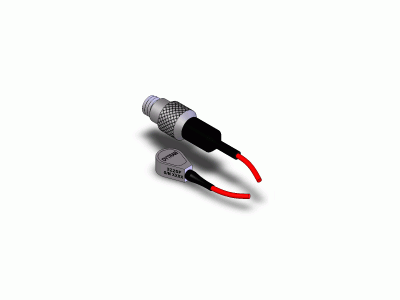

The Dytran 3225F series is an ultra miniature teardrop low profile IEPE accelerometer with a sensitivity of 10 mV/g, designed to adhesively mount in spaces typically inaccessible to other types of accelerometers. The sensor for models 3225F/F1/F3 has an overall height of 0.19-inches (4.9-millimeter) and weighs just 0.6 grams. Model 3225F2 sensor has an overall height of 0.20-inches (5.1-millimeters) and weighs just 1.0 gram.

Featuring a quartz shear sensing element in a lightweight titanium housing, the models 3225F/F3 utilizes an integral 3-foot (0.9-meter) cable terminating to a 10-32 jack and features an epoxy seal. The models 3225F1/F2 utilizes a specially designed 3-56 coaxial connector, mating with a 3-foot (0.9-meter) replaceable coaxial cable and terminating to a 10-32 jack. Units are hermetically sealed for reliable operation in a high humidity and dirty environments. All units are base isolated to avoid EMI/ground loop interference.

Supplied Accessories: (1) model 6298 Petro mounting wax, (1) model 6591A installation/removal wrench, (1) model 6003A03 cable assembly (Model 3225F1)

Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax

Compatible Cables: 6011A
