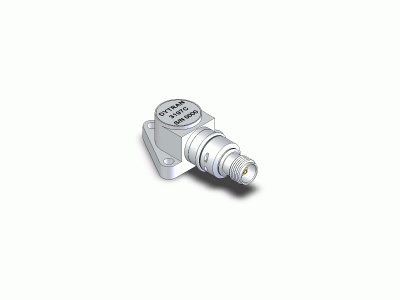

The Dytran model 3197C is a high temperature charge mode accelerometer, designed to reliably operate in temperatures up to +500°F (+260°C). Featuring a sensitivity of 2.4 to 4.5 pC/g, and a rugged stainless steel construction, the model 3197C is hermetically sealed for reliable operation in high humidity and dirty environments and case isolated, to avoid EMI/ground loop interference (exact sensitivity is provided on the calibration certificate supplied with each sensor). Units are offered with an industry standard tri-bolt mount and radial TNC connector.
Supplied Accessories: (3) model 6535 mounting screws (8-32)
3197C
Airborne Charge Mode Accelerometer
Dytran Instruments Inc.
- Charge mode
- +500° (+260°C) operation
- 2.4 to 4.5 pC/g sensitivity
- 2,500 Hz upper frequency range (±5%)
- TNC radial connector
- Tri-bolt mount
- Weight: 85 grams
Details
Specifications
Type
Charge Mode
# of Axis
1
Full Scale
500 g
Output
3 pC/g
4 pC/g
4 pC/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Tri-Bolt
Connection
TNC
Min Temperature
-54 °C
Max Temperature
260 °C
Models
3197C
