The Dytran model 3191A series is an IEPE piezoelectric accelerometer with built-in Faraday shield for electrostatic noise immunity, excellent low frequency response of 0.08 Hz and the capability to resolve vibrations as low as 0.000001 g's RMS.
Available with a sensitivity of 5 V/g upto 10 V/g, design of the model 3191A series incorporates an annular shear ceramic sensing element, packaged in a highly rugged stainless steel housing with a 2-pin MIL-C-5015 axial connector and 1/4-28 mounting hole. The 3191A series was designed to be directly compatible with the Dytran model 6194 Immersion Proof sealing boot (sold separately). When used together, the sensor remains fully functional in an IP65 environment. The sensors are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6176 mounting stud (1/4-28 to 1/4-28)
Suggested Accessories: model 4110C current source power unit, model 6187 magnetic mounting base, model 6190 magnetic mounting base, model 6194 protective boot
Compatible Cables: 6038A, 6080A, 6082A, 6406A, 6407A, 6459A

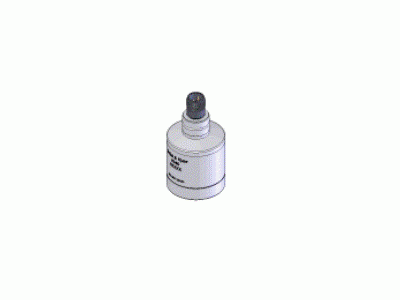

3191A
Industrial Single Axis Accelerometer
Dytran Instruments Inc.
- IEPE
- High Sensitivity
- Available with water and oil resistant environmental boot
- Internal Faraday shield
- 5,000 mV/g or 10,000 mV/g sensitivity
- 0.5g or 1g range
- 0.08 to 1,000 Hz frequency range (±5%)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
0.5 g
1 g
1 g
Output
5000 mV/g
10000 mV/g
10000 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
1/4-28 Tapped Hole
Connection
2-Pin Axial Connector
Min Temperature
-51 °C
Max Temperature
107 °C
Models
3191A
5,000 mV/g, 1g range
3191A1
10,000 mV/g, 0.5g range
