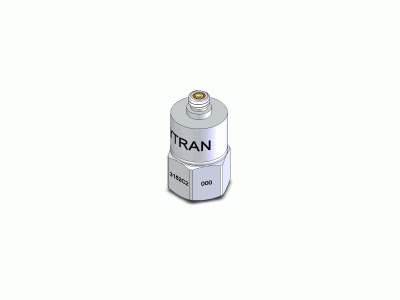

The Dytran model 3152C2 is a high temperature piezoelectric charge mode accelerometer, featuring an axial mounted 10-32 electrical connector and 10-32 tapped mounting hole. With a 0.5 inch (12.7 millimeter) hex size, the accelerometer is small enough to mount in a multitude of space constrained environments. Model 3152C2 has a sensitivity of 4 pC/g, robust stainless steel housing and features a rugged hermetically sealed construction for use in demanding environments.
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32)
Recommended Accessories: model 4110C current source power unit, 4705A series in-line charge amplifier (BNC jack to BNC jack), 4751B series in-line charge amplifier (10-32 jack to 10-32 jack), model 6196 magnetic mounting base (10-32), model 6213 adhesive mounting base (10-32)
Compatible Cables: 6002A, 6013A, 6019A, 6036A, 6037A, 6049A, 6057A, 6097A, 6411A, 6417A, 6419A, 6924A, 6991A
3152C2
Miniature High Temperature Accelerometer
Dytran Instruments Inc.
- Small size
- Charge mode
- +500°F (+260°C) operation
- 4 pC/g sensitivity
- 5,000 Hz upper frequency range (±10%)
- 10-32 axial connector
- 10-32 tapped hole
Details
Specifications
Type
Charge Mode
# of Axis
1
Full Scale
1000 g
Output
4 pC/g
Material
Stainless Steel
Mounting
10-32 Tapped Hole
Connection
10-32 Micro Coaxial
Min Temperature
-54 °C
Max Temperature
260 °C
Models
3152C2
