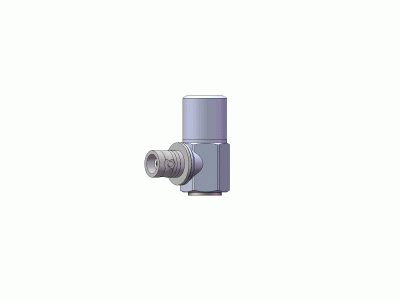

The Dytran model 3148E is a highly rugged IEPE accelerometer with a 100 mV/g sensitivity and low frequency vibration measurement capabilities down to 0.5 Hz.
Design of the model 3148E incorporates a ceramic shear sensing element packaged in a stainless steel housing, incorporating a radial BNC connector and 10-32 mounting hole. The model 3148E is also hermetically sealed for reliable operation in high humidity and dirty environments and base isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6200S mounting stud (10-32 to 10-32), (1) model 6292 thermal boot
Suggested Accessories: model 4110C current source power unit, model 6190 magnetic mounting base
Compatible Cables: 6020A
3148E
Industrial Accelerometer
Dytran Instruments Inc.
- IEPE
- 100 mV/g sensitivity
- 50g range
- 0.5 to 5,000 Hz frequency range (±5%)
- BNC radial connector
- 10-32 tapped hole
- Weight: 48 grams
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
Output
100 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
10-32 Tapped Hole
Connection
BNC
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3148E
