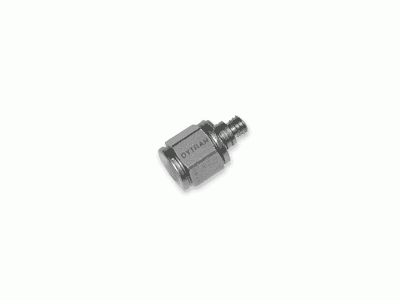

The 3145AG series is a miniature, low mass IEPE accelerometer weighing just 2.1 grams.
Available with a 5 mV/g up to 100 mV/g sensitivity, the accelerometer incorporates a ceramic shear sensing element in a robust stainless steel housing, with an adhesive mount and axial 5-44 connector. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6014A, 6017A, 6021A, 6024A, 6025A, 6028A, 6029A, 6040A, 6056A, 6092A
3145AG
Miniature IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- Miniature design
- 5 mV/g, 10 mV/g or 100 mV/g sensitivity available
- 50g, 500g, or 1000g range available
- 0.5 to 10,000 Hz (±5%)
- 5-44 axial connector
- Adhesive mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
1000 g
500 g
1000 g
Output
5 mV/g
10 mV/g
100 mV/g
10 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Adhesive
Connection
5-44 Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3145A1G
10 mV/g, 500g range
3145A2G
5 mV/g, 1,000g range
3145AG
100 mV/g, 50g range
