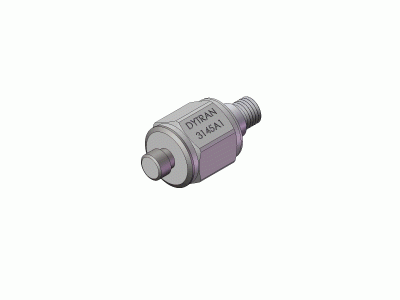

The Dytran model 3145A series is a miniature, low mass IEPE accelerometer weighing just 2.3 grams.
Available with a 5 mV/g up to 100 mV/g sensitivity, the accelerometer incorporates a ceramic shear sensing element in a robust stainless steel housing, with a 5-40 mounting stud and axial 5-44 connector. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Compatible Cables: 6014A, 6017A, 6021A, 6024A, 6025A, 6028A, 6029A, 6040A, 6056A, 6092A
3145A
Miniature LIVM Accelerometer
Dytran Instruments Inc.
- IEPE
- Miniature design
- 5 mV/g, 10 mV/g, or 100 mV/g sensitivity
- 50g, 500g, or 1000g range
- 0.8 to 10,000 Hz (±5%)
- 5-44 axial connector
- 5-40 stud mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
1000 g
500 g
1000 g
Output
5 mV/g
10 mV/g
100 mV/g
10 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
5-40 Stud
Connection
5-44 Coaxial
Min Temperature
-51 °C
Max Temperature
85 °C
Models
3145A
100 mV/g, 50g range
3145A1
10 mV/g, 500g range
3145A2
5 mV/g, 1,000g range
