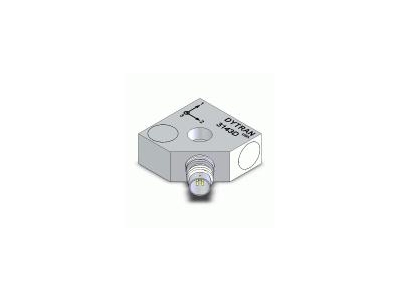

The 3143D series is a miniature IEPE triaxial accelerometer. Available with a sensitivity of 10 mV/g up to 100 mV/g, the 3143D series features three ceramic shear mode sensing elements packaged in a lightweight titanium housing.
Units utilize an industry standard radial 4-pin connector and thru hole 6-32 mounting screw. This ring style configuration allows the sensor to be turned 360° prior to securing for ease of installation. The 3143D series is hermetically sealed for reliable operation in high humidity and dirty environments, as well as case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6247A2 mounting screw (6-32)
Recommended Accessories: model 4114B1 current source power unit, model 6216 adhesive mounting base
Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
3143D
Triaxial LIVM Accelerometer
Dytran Instruments Inc.
- IEPE
- Triaxial
- 360° cable orientation
- Low profile
- 10 mV/g, 50 mV/g, or 100 mV/g sensitivity available
- 50g, 100g or 500g range available
- 0.5 to 3,000 Hz frequency range (±5%)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
50 g
100 g
500 g
100 g
500 g
Output
10 mV/g
50 mV/g
100 mV/g
50 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Thru Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
85 °C
Models
3143D
10 mV/g, 500g range
3143D1
100 mV/g, 50g range
3143D2
50 mV/g, 100g range
