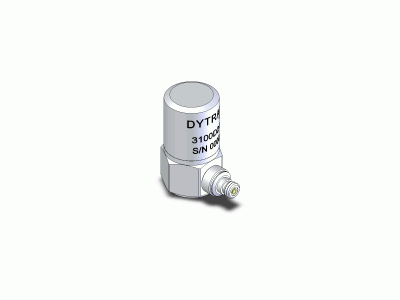

The Dytran model 3100D24 is an IEPE accelerometer with ultra high sensitivity of 1,000 mV/g. Design of the model 3100D24 features a ceramic shear sensing element, packaged in a stainless steel 5/8-inch hex housing, with a 10-32 radial connector and 10-32 mounting hole for general purpose installation across a variety of applications.
Units are case isolated to avoid EMI/ground loop interference and are hermetically sealed for reliable operation in high humidity and dirty environments.
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32), (1) model 6215 thermal boot
Suggested Accessories: model 4110C current source power unit, model 6196 magnetic mounting base, model 6213 adhesive mounting base
Compatible Cables: 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
3100D
General Purpose LIVM Accelerometer
Dytran Instruments Inc.
- High sensitivity
- IEPE
- 1,000 mV/g sensitivity
- 5g range
- 1 to 1,000 Hz frequency range (±5%)
- 10-32 radial connector
- 10-32 tapped hole
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
5 g
Output
1000 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
10-32 Tapped Hole
Connection
10-32 Micro Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3100D24
