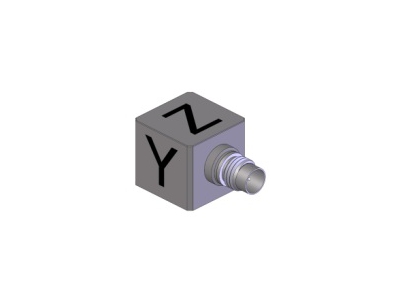

The Dytran models 3093M8/M10/M18 are case isolated triaxial IEPE accelerometers with a 10 mV/g up to 100 mV/g sensitivity, vertical height of 0.61-inches (15.4-millimeters), an overall weight of 10 grams, and include Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities.
Featuring ceramic shear sensing elements packaged in a lightweight titanium housing, design of the models 3093M8/M10/M18 incorporates an industry standard 4-pin radial connector and 10-32 stud mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32)
Recommended Accessories: model 4114B1 current source power unit, model 6196 magnetic mounting base, model 6213 adhesive mounting base
Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
3093M8/M10/M18
Triaxial Accelerometer with TEDS
Dytran Instruments Inc.
- IEPE
- IEEE 1451.4 TEDS capabilities
- Triaxial
- Low profile
- 10 mV/g, 50 mV/g or 100 mV/g sensitivity
- 50g, 100g or 500g range
- 0.7 to 5,000 Hz frequency range (±5%)(3093M18)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
50 g
100 g
500 g
100 g
500 g
Output
10 mV/g
50 mV/g
100 mV/g
50 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
10-32 Tapped Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
85 °C
107 °C
121 °C
107 °C
121 °C
Models
3093M10
50 mV/g, 100g range, 2 to 5,000 Hz frequency range (±5%), Max. Operating Temp: +121°C
3093M18
10 mV/g, 500g range, 0.7 to 5,000 Hz frequency range (±5%), Max. Operating Temp: +121°C
3093M8
100 mV/g, 50g range, 2 to 5,000 Hz frequency range (±10%), Max. Operating Temp: +107°C
