3093M27

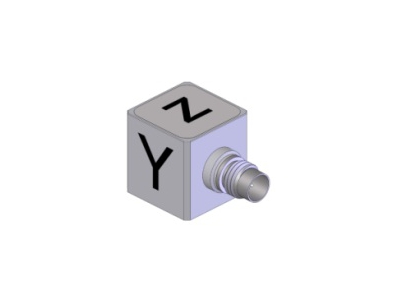

The Dytran model 3093M27 is a case isolated triaxial IEPE accelerometer with a 10 mV/g sensitivity, vertical height of 0.60-inches (15.1-millimeters), an overall weight of 15 grams, and is capable of operating at temperatures up to +320°F (+160°C) and includes Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities.

Featuring ceramic shear sensing elements packaged in a lightweight titanium housing, design of the model 3093M27 incorporates an industry standard 4-pin radial connector and 10-32 stud mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.

Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32)

Recommended Accessories: model 4114B1 current source power unit, model 6196 magnetic mounting base, model 6213 adhesive mounting base

Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
