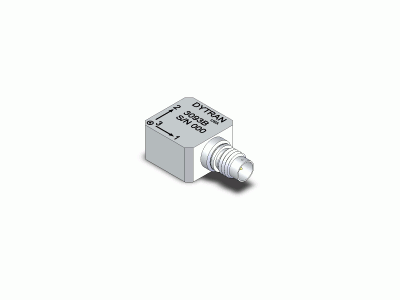

The Dytran models 3093B/B1/B1T is a case isolated triaxial IEPE accelerometer with a 100 mV/g sensitivity. Model 3093B has a vertical height of 0.37-inches (9.3-millimeters) and an overall weight of 10 grams. Models 3093B1 has a vertical height of 0.54-inches (13.7-millimeters) and an overall weight of 13.5 grams. Model 3093B1T has a vertical height of 0.54-inches (13.7-millimeters), an overall weight of 10 grams, and include Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities. The Dytran model 3093M4 is a case isolated triaxial IEPE accelerometer with a 50 mV/g sensitivity, vertical height of 0.37-inches (9.3-millimeters) and an overall weight of 9.5 grams.
Featuring ceramic shear sensing elements packaged in a lightweight titanium housing, design of the models 3093B/M4 incorporates an Dytran designed 4-pin radial connector and adhesive mounting capabilities. Model 3093B1/B1T uses 10-32 stud mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
Supplied Accessories: (1) model 6200 mounting stud (10-32 to 10-32) (Model 3093B1/B1T)
Recommended Accessories: model 4114B1 current source power unit (All models)
- model 6273 petro mounting wax(3093B)
- model 6196 magnetic mounting base, model 6213 adhesive mounting base(3093B1/B1T/M4)
Compatible Cables: 6430A, 6431A, 6801A, 6830A
3093B/B1/B1T/M4
Triaxial Accelerometer
Dytran Instruments Inc.
- Triaxial
- IEPE
- IEEE 1451.4 TEDS capabilities (Model 3093B1T ONLY)
- Low profile
- 100 mV/g sensitivity
- 50g range
- 0.6 to 5,000 Hz frequency range (±10%)(Model 3093B/M4)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
50 g
100 g
100 g
Output
50 mV/g
100 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
10-32 Tapped Hole
10-32 Tapped Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
82 °C
107 °C
107 °C
Models
3093B
100 mV/g, 50g range, adhesive mount, 10 grams, 0.6 to 5,000 Hz frequency range (±10%), Temperature Range: -51°C to +107°C
3093B1
100 mV/g, 50g range, 10-32 tapped hole, 13.5 grams, 2 to 5,000 Hz frequency range (±10%), Temperature Range: -51°C to +107°C
3093B1T
100 mV/g, 50g range, 10-32 tapped hole, 10 grams, 2 to 5,000 Hz frequency range (±10%), Temperature Range: -51°C to +82°C, IEEE 1451.4 TEDS capabilities
3093M4
50 mV/g, 100g range, adhesive mount, 9.5 grams, 0.5 to 5,000 Hz frequency range (±10%), Temperature Range: -51°C to +121°C
