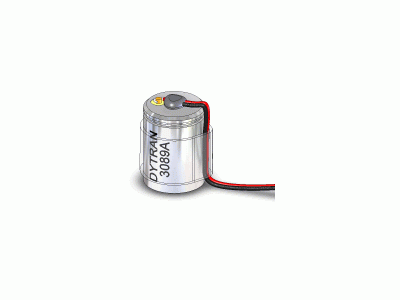

The Dytran model 3089A is a cost effective lightweight IEPE accelerometer, with an overall height of just 0.25 inches (6.5 millimeters) and a weight of 0.6 grams. Offered with a 10 mV/g sensitivity and 500g shock limit, the model 3089A incorporates a quartz crystal sensing element, operating in shear mode.
Model 3089A features a rugged stainless steel construction, integral wires and adhesive mounting. Units hermetically sealed for reliable operation in high humidity and dirty environments.
Recommended Accessories: model 4110C current source power unit, model 6273 petro mounting wax
3089A
Ultra Mini IEPE Accelerometer
Dytran Instruments Inc.
- Cost effective
- IEPE
- 10 mV/g sensitivity
- 500g range
- 1 to 10,000 Hz (±10%)
- Integral cable
- Adhesive mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
Output
10 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Adhesive
Connection
Integral Cable
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3089A
