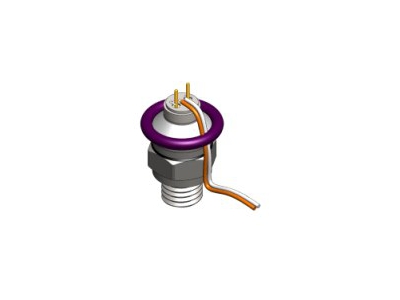

3086AT

Shock Accelerometer

Dytran Instruments Inc.

IEPE
Lightweight
High natural frequency of 100 kHz
0.05 mV/g, 0.1 mV/g, 0.25 mV/g, 0.5 mV/g, 1 mV/g or 2 mV/g sensitivity
2,500g, 5,000g, 10,000g. 20,000 50,000g or 70,000g range
0.35 to 10,000 Hz frequency range (±10%)
Axial mounted solder pins

Details

The Dytran model 3086AT series is a highly rugged IEPE accelerometer with a very high natural frequency of 100 kHz, designed to measure severe shocks and other extreme short duration events. High shock measurement requirements are typically characterized as such above 2,500g's. In order to accurately measure shock levels of this magnitude, accelerometers must have a high natural frequency, rugged construction and be fairly compact in size.

Available with a 2,500g up to 70,000g range, the Dytran model 3086AT series features a quartz crystal sensing element, operating in compression mode, housed in a hermetically sealed lightweight titanium housing, for a total weight of just 3.5 grams. Units are electrically base isolated and feature a 10-32 mounting stud and axial mounted solder pins for cable connection. This particular connector style aims in eliminating discontinuities during high g events and reduces connector stresses. The unique mounting configuration of the Dytran model 3086AT series allows for use of a field replaceable cable assembly (sold separately).

Recommended Accessories: model 4110C current source power unit

Compatible Cables: 6869A

Specifications

Type

Voltage Mode (IEPE)

# of Axis

1

Full Scale

2500 g
5000 g
10000 g
20000 g
50000 g
70000 g

Output

0.05 mV/g
0.1 mV/g
0.25 mV/g
0.5 mV/g
1 mV/g
2 mV/g

Excitation

18 - 20 V DC

Material

Titanium

Mounting

10-32 Stud

Connection

Solder Pins

Min Temperature

-51 °C

Max Temperature

121 °C

Models

3086A1T

0.05 mV/g, 70,000g range,

3086A2T

0.1 mV/g, 50,000g range

3086A3T

0.25 mV/g, 20,000g range

3086A4T

0.5 mV/g, 10,000g range

3086A5T

1 mV/g, 5,000g range

3086A6T

2 mV/g, 2,500g range
