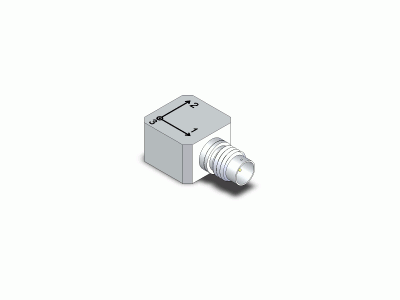

The Dytran model 3053B series is a rugged, low profile miniature triaxial IEPE accelerometer with a vertical height of 0.35 up to 0.53 inches and an overall weight of 5.5 to 7.5 grams.
Offered with a 5 mV/g up to 10 mV/g sensitivity, the Dytran 3053B series incorporates quartz shear sensing elements, packaged in a lightweight titanium housing, with an industry standard 4-pin radial connector and adhesive or 10-32 stud mount. Units are hermetically sealed for reliable operation in high humidity and dirty environments and also case isolated to avoid EMI/ground loop interference.
3053B
Triaxial Accelerometer
Dytran Instruments Inc.
- IEPE
- Triaxial
- 5 mV/g or 10 mV/g sensitivity
- 500g or 1000g range
- 2 to 5,000 Hz frequency range (±10%)
- 4-pin 1/4-28 radial connector
- Adhesive mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
500 g
1000 g
1000 g
Output
5 mV/g
10 mV/g
10 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
10-32 Tapped Hole
10-32 Tapped Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3035B
10 mV/g, 500g range, adhesive mount, 6 grams
3035B1
5 mV/g, 1,000g range, adhesive mount, 5.5 grams
3035B2
10 mV/g, 500g range, 10-32 tapped hole, 7.5 grams
