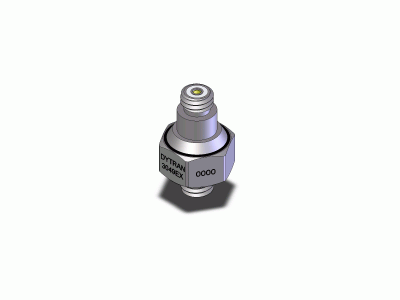

The Dytran model 3049E series is a general purpose IEPE accelerometer, available with a sensitivity of 10 mV/g up to 100 mV/g and an upper frequency response of 10,000 Hz. Featuring a ceramic shear sensing element packaged in a lightweight titanium housing, model 3049E is hermetically sealed for reliable operation in high humidity and dirty environments and base isolated to avoid EMI/ground loop interference.
Model 3049E series offer the same high reliability performance with various mounting options. The Dytran models 3049E and 3049E2 feature a 10-32 mounting stud, while models 3049E1 and 3049E3 offer adhesive mounting capabilities.
3049E
General Purpose IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- Lightweight
- 10 mV/g or 100 mV/g sensitivity
- 50g or 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 axial connector
- 10-32 stud mount or adhesive mount
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
500 g
Output
10 mV/g
100 mV/g
100 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
10-32 Stud
10-32 Stud
Connection
10-32 Micro Coaxial
Min Temperature
-51 °C
Max Temperature
100 °C
Models
3049E
10 mV/g, 500g range,10-32 stud mount, 3.3 grams
3049E1
10 mV/g, 500g range, adhesive mount, 3.1 grams,
3049E2
100 mV/g, 50g range, 10-32 stud mount, 3.3 grams
3049E3
100 mV/g, 50g range, adhesive mount, 3.1 grams
