The Dytran model 3030C1 is known as the industry workhorse for Environmental Stress Screening (ESS) and Highly Accelerate Life Testing and Highly Accelerated Stress Screening (HALT/HASS). Because of its rugged, lightweight, hermetically sealed design, all stainless steel construction, and reliable high temperature operation to +500°F (+260°C), the Dytran model 3030C1 has become the industry's charge mode accelerometer of choice for test laboratory environments.
Recommended Accessories: model 4110C current source power unit, 4705M series in-line charge amplifier (10-32 jack to BNC jack), 4751B series in-line charge amplifier (10-32 jack to 10-32 jack)
Compatible Cables: 6002A, 6013A, 6019A, 6019B, 6036A, 6037A, 6049A, 6057A, 6097A, 6411A, 6417A, 6419A, 6924A, 6991A

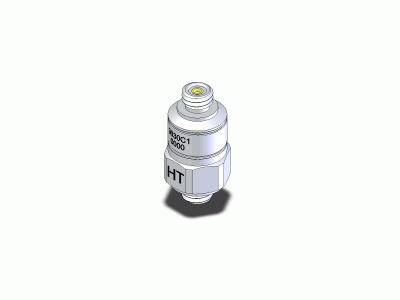

3030C1
Miniature High Temperature Accelerometer
Dytran Instruments Inc.
- 0.40 pC/g sensitivity
- 5,000 Hz upper frequency range (±5%)
- 10-32 axial connector
- 10-32 stud mount
- +500°F (+260°C) operation
- Charge mode
- Weight 6.8 grams
Details
Specifications
Type
Charge Mode
# of Axis
1
Full Scale
500 g
Output
0.4 pC/g
Material
Stainless Steel
Mounting
10-32 Stud
Connection
10-32 Micro Coaxial
Min Temperature
-73 °C
Max Temperature
260 °C
Models
3030C1
Downloads
3030C1_ATI
